Front sag

 ·  Posted: 30.03.2021  ·  #1
I was walking beside the van today and noticed the driver side seemed to be sitting lower than the passenger side so I measured the distance from the top of the wheel arch and the ground and there was a 1 inch difference, I've checked the shocks for a leak and it's clean, van drives and brakes OK and the tyres are worn evenly and of course its due a test in the next couple of weeks, anyone any ideas
Join this MeWe Motorhome Craic Group today.
Galldar
Eat's Sleep's craic
Avatar
Gender: n/a
Location: Meath
Age: 104
Posts: 788
Registered: 07 / 2019
My Motorhome: Paddy the Pilote Galaxy 78MX
Base Vehicle: Citroen 2.5TD
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #2
Quote by eirebus

I was walking beside the van today and noticed the driver side seemed to be sitting lower than the passenger side so I measured the distance from the top of the wheel arch and the ground and there was a 1 inch difference, I've checked the shocks for a leak and it's clean, van drives and brakes OK and the tyres are worn evenly and of course its due a test in the next couple of weeks, anyone any ideas

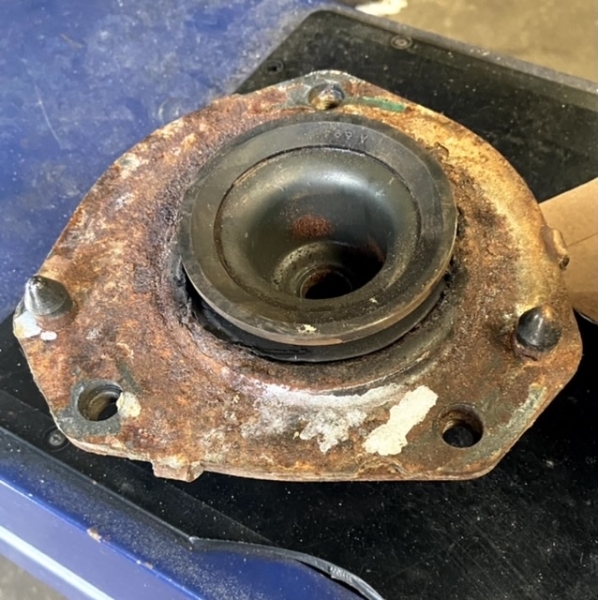

We had a similar issue last year. Needed the front top mounts replacing.


CHAUSSON
Eat's Sleep's craic
Avatar
Gender:
Location: Tipperary
Posts: 6813
Registered: 02 / 2012
My Motorhome: Knaus Sport Ti 700 UFB Silverline
Base Vehicle: Renault Master 150 dci Quickshift
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #3
Check if the passenger rear wheel is on a hight. The test is up in ours for the last couple weeks, There is a three months extension at the moment. Dave.
eirebus
Eat's Sleep's craic
Avatar
Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #4
Quote by CHAUSSON

Check if the passenger rear wheel is on a hight. The test is up in ours for the last couple weeks, There is a three months extension at the moment. Dave.


Have got my 3 months Pat, I've had the van parked in different places and still the same 1 inch difference

@Galldar it's an A class van so I can't see the top of suspension but the thought did cross my mind
Galldar
Eat's Sleep's craic
Avatar
Gender: n/a
Location: Meath
Age: 104
Posts: 788
Registered: 07 / 2019
My Motorhome: Paddy the Pilote Galaxy 78MX
Base Vehicle: Citroen 2.5TD
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #5
Quote by eirebus


@Galldar it's an A class van so I can't see the top of suspension but the thought did cross my mind


Can’t see them in the Ducato either, you have to access them from behind the dash apparently, making replacing them a bit more difficult.

I had noticed a rattle coming from the driver suspension too though.
Liked by: eirebus
Albert the Talbot
Eat's Sleep's craic
Avatar
Gender:
Location: Telford/ Fermanagh
Age: 64
Posts: 1312
Registered: 08 / 2018
My Motorhome: Pilote Galaxy 92
Base Vehicle: Sprinter
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #6
If you have a rattle I’d suggest you have a broken spring
eirebus
Eat's Sleep's craic
Avatar
Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3
Subject:

Re: Front sag

 ·  Posted: 30.03.2021  ·  #7
Quote by Albert the Talbot

If you have a rattle I’d suggest you have a broken spring


Other than the 1 inch sag everything seems OK, no noise, no leaks and no tyre wear
sprinter
Eat's Sleep's craic
Avatar
Gender:
Location: Co Wicklow
Age: 94
Posts: 7871
Registered: 01 / 2015
My Motorhome: Matilda 2 Pilote 703FP Explorateur
Base Vehicle: 3ltr 318 Sprinter Automatic
Subject:

Front sag

 ·  Posted: 31.03.2021  ·  #8
Could have something to do with that big guy who sits on that side all the time.😂🤣😃
Sorry Dave just could not resist.
Liked by: eirebus, mad max, panda, The Rambler, +deleted user
dubbrin
Newbie
Avatar
Gender: n/a
Location: Cork
Age: 40
Posts: 18
Registered: 09 / 2020
My Motorhome: 2002 Knaus Suntraveller
Base Vehicle: Fiat Ducato II 2.8JTD
Subject:

Re: Front sag

 ·  Posted: 01.04.2021  ·  #9
You won;t be able to tell anything from looking at the top of the stut mount in a Ducato unless you jack it up and with one person rocking the wheel/shock you might me able to notice play in the top mount, the bolt through the shock, or any other part of it. There might be a coil broken off the spring, you'd be able to compare sides very easily with both wheels off. I don't think a failed shock would cause 1" of a sag on it's own.

Is everything else in order? Control arm, roll bar, etc?
Liked by: adria, eirebus, sprinter
baguette
Eat's Sleep's craic
Avatar
Gender:
Location: Cork
Age: 74
Posts: 2939
Registered: 11 / 2011
My Motorhome: Rapido 963F
Base Vehicle: Ducato 2.8 JTD Power
Subject:

Re: Front sag

 ·  Posted: 01.04.2021  ·  #10
How long have you had the 'van. There is the possibility a previous owner got work done and spring was replaced with the wrong version. The originals might have been the special heavier springs for motorhomes and one was replaced by a regular van spring.
eirebus
Eat's Sleep's craic
Avatar
Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3
Subject:

Re: Front sag

 ·  Posted: 01.04.2021  ·  #11
Have it 4 years and it was serviced by Donaghys
eirebus
Eat's Sleep's craic
Avatar
Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3
Subject:

Re: Front sag

 ·  Posted: 01.04.2021  ·  #12
Been advised to send it for the test and they have the equipment to find what's wrong and then get it fixed
Liked by: gerryb148, panda
baguette
Eat's Sleep's craic
Avatar
Gender:
Location: Cork
Age: 74
Posts: 2939
Registered: 11 / 2011
My Motorhome: Rapido 963F
Base Vehicle: Ducato 2.8 JTD Power
Subject:

Re: Front sag

 ·  Posted: 01.04.2021  ·  #13
Quote by baguette

How long have you had the 'Lorry. There is the possibility a previous owner got work done and spring was replaced with the wrong version. The originals might have been the special heavier springs for motorhomes and one was replaced by a regular Lorry spring.


Feckin spellcheck. I typed van (as we often say when referring to campervan or caravan) and spellcheck changed it to lorry, I know you don't have a lorry ;-)
Liked by: eirebus
eirebus
Eat's Sleep's craic
Avatar
Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3
Subject:

Re: Front sag

 ·  Posted: 09.04.2021  ·  #14
Quote by sprinter

Could have something to do with that big guy who sits on that side all the time.😂🤣😃
Sorry Dave just could not resist.


Looks like you were right for once Martin, the van passed the cvrt yesterday and the sag is gone, no idea why but I'm a very happy camper 😀
