Twin camera problems

 ·
Posted: 16.07.2020  ·  #1
OK the story so far
Due to being forced to stay at home I decided that as well as having two cameras and parking sensors at the back I would fit one of those combined camera and parking sensors in a number plate holder at the front. All done working via two way switch through relay to defeat the CANBUS and diodes to stop inference and happy to say I got something right (please dont tell Maureen) EXCEPT
As the camera is designed for the rear of a car the image on the screen appears the "wrong way round" and this is where the little grey cells fail me.
I have tried changing the wiring (before I realised that the image infact was correct for the above reason.)) There is no way on the screen I have to change the image and I cant find a small monitor that allows for correction to rear camera mounted on the front, whilst leaving the other feed the opposite way round
Only thing not yet tried is to cross connect the coax feed but really not holding out much hope so

Any body out there can tell me how to solve this
In Hope David


Mark&Wendy
Eat's Sleep's craic
Avatar
Gender:
Location: Killinchy, Co. Down
Age: 58
Posts: 1334
Registered: 02 / 2016
My Motorhome: Roller team 707
Base Vehicle: 2016 Ducato
Subject:

Re: Twin camera problems

 ·
Posted: 16.07.2020  ·  #2
Is there not a particular wire that if earthed, it rotates the picture.


heanorboy
Eat's Sleep's craic
Avatar
Gender:
Location: YATTON, NORTH SOMERSET
Age: 75
Posts: 1443
Registered: 04 / 2013
My Motorhome: Wildax Europa
Base Vehicle: 2015 Renault Master
Subject:

Re: Twin camera problems

 ·
Posted: 16.07.2020  ·  #3
Quote by Mark&Wendy

Is there not a particular wire that if earthed, it rotates the picture.

Thank you for your reply.
I am afraid that you have lost me there, you may well be right, can you be more specific

David


Wolvespaul
Craic'er
Avatar
Gender:
Location: Longford
Age: 49
Posts: 32
Registered: 11 / 2019
My Motorhome: 2004 Adria Adriatik 620sk
Base Vehicle: Fiat Ducato 2.8 JTD
Subject:

Re: Twin camera problems

 ·
Posted: 17.07.2020  ·  #4
Do you not have a menu on Screen ?
The will be an option for mirrored L To R , or R to L.


heanorboy
Eat's Sleep's craic
Avatar
Gender:
Location: YATTON, NORTH SOMERSET
Age: 75
Posts: 1443
Registered: 04 / 2013
My Motorhome: Wildax Europa
Base Vehicle: 2015 Renault Master
Subject:

Re: Twin camera problems

 ·
Posted: 17.07.2020  ·  #5
Quote by Wolvespaul

Do you not have a menu on Screen ?
The will be an option for mirrored L To R , or R to L.


Regret that not available on this screen, also as I said previous I do not wish to reverse the other image.
Think that I will have to look harder for a suitable screen
The cross over coax cable idea did not work

We have a luvly zunzhine Zummerset day today wish we were away but cant.
David

Liked by: sprinter

Mark&Wendy
Eat's Sleep's craic
Avatar
Gender:
Location: Killinchy, Co. Down
Age: 58
Posts: 1334
Registered: 02 / 2016
My Motorhome: Roller team 707
Base Vehicle: 2016 Ducato
Subject:

Re: Twin camera problems

 ·
Posted: 17.07.2020  ·  #6
Quote by heanorboy

Quote by Mark&Wendy

Is there not a particular wire that if earthed, it rotates the picture.

Thank you for your reply.
I am afraid that you have lost me there, you may well be right, can you be more specific

David

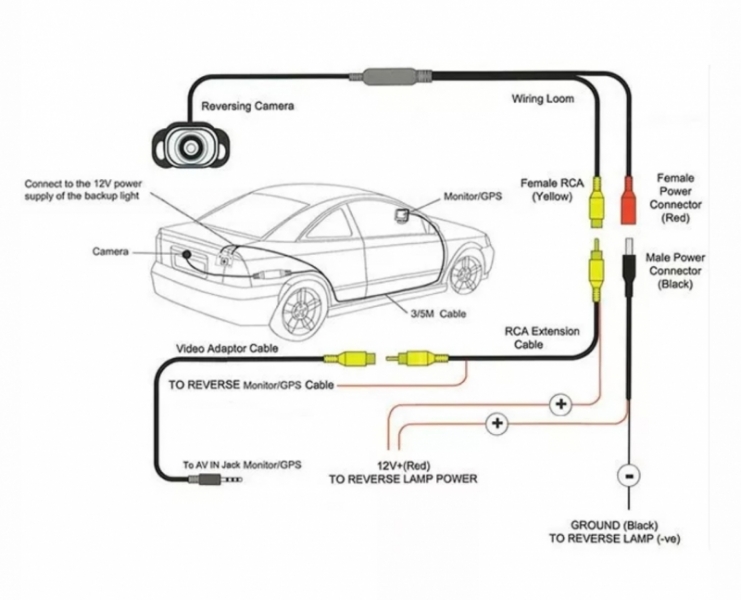

Found this wiring diagram on eBay. It shows a wire for reversing the picture. I think you just earth it. Worth a look.
