Water pump not working

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Water pump not working

· Posted: 04.07.2020 · #1

Hi. We have a German built LMC motorhome and there is a problem with the water pump. Pump is fine but it's not getting the 12v power when any taps (kitchen, bathroom or shower) are opened. The whole electric setup is controlled by a Schaudt 630 control block and apparently there are other linked control units for the pump, heating, fridge, water & waste tank and the TV/satellite.
The problem is I can't find the smaller control units only the wires from the master control disappearing into the bodywork.
Anyone got any thoughts or ideas? Or any knowledge what dealers would handle LMC vans in Ireland?
Thanks, Michael.

Join this MeWe Motorhome Craic Group today.

Daffysparks

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #2

Sorry, I’m not familiar with that setup. However I’m confident someone will be along shortly that can help you. A few photos would really help. Does it definitely work off micro switches at the taps, and not through a flow/ pressure switch.

eirebus

Eat's Sleep's craic

Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #3

My Schaudt electroblock controls everything, have you checked the fuse
More info :

https://www.google.com/url?sa=…LJ4yoEk59_

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #4

Hi. Thanks for the replies. Definitely works on micro switches. You can still hear them click when you open the taps.

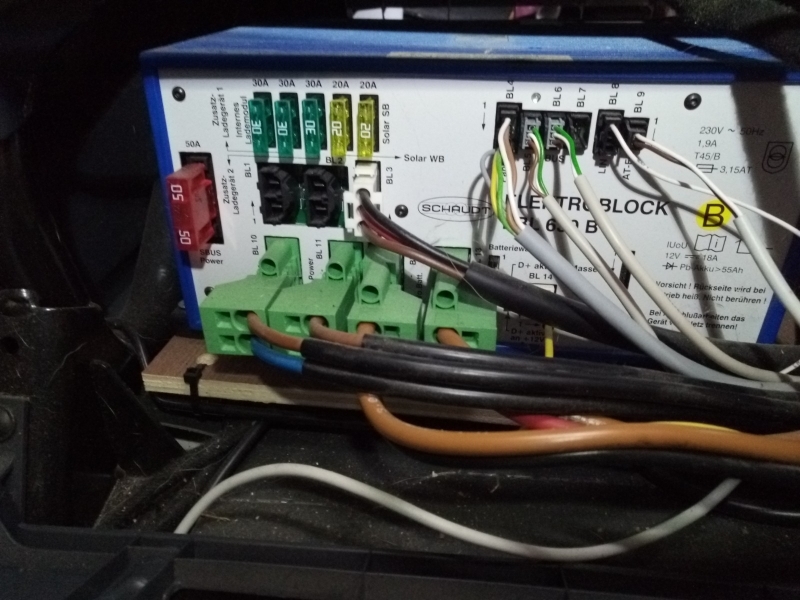

I've downloaded the English instruction manual of Schaudt EBL630 directly from their website. This lists the various bus modules for heating, etc. The fuses are all good. Attached are photos and the instruction manual. Thanks for the suggestions.

You must be logged in or your permissions are to low to see this Attachment(s).

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #5

Sorry photos wouldn't load.

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #6

Daffysparks

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #7

You said the pump is fine how did you ascertain this.

Liked by: eirebus

eirebus

Eat's Sleep's craic

Gender:
Location: kildare
Posts: 7645
Registered: 10 / 2011
My Motorhome: Dethleffs Advantage
Base Vehicle: Fiat 2.3

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #8

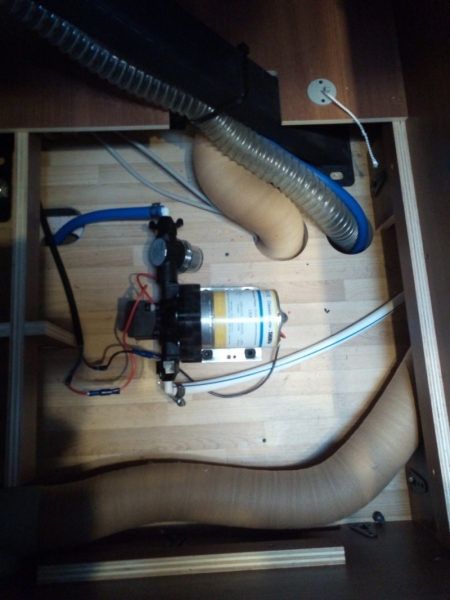

That looks like pressurised water system , there's no micro switches at the taps if it is
Is the pump making a working noise ?

Albert the Talbot

Eat's Sleep's craic

Gender:
Location: Telford/ Fermanagh
Age: 64
Posts: 1312
Registered: 08 / 2018
My Motorhome: Pilote Galaxy 92
Base Vehicle: Sprinter

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #9

I think those pumps can work on both systems. Looks like a shurflo pump which I had on a previous van with micro switches

Liked by: eirebus

Daffysparks

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #10

To my mind the filter glass should be the other way. ie. under the filter. Having it that way could give you an air lock. But I’m unsure which way is up by that photo

Liked by: Albert the Talbot

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #11

Thanks for all the replies.
The pump is working when I supply it with power from a separate battery/source.not from the 12V installation. Definitely should work on micro switches (I meant to say that it should be working not that it is working). Not a pressurised system. No problem with the water filter it is in exactly the same position it has been for the last 4 years. It is a SHURflo pump. I think it is a control problem. The micro switches are not controlling the power output to the pump or the control panel has a broken 12V circuit. I need to know where the control to the pump is found.
Any other ideas welcome. Thanks.

Liked by: mad max, +deleted user

Mark&Wendy

Eat's Sleep's craic

Gender:
Location: Killinchy, Co. Down
Age: 58
Posts: 1334
Registered: 02 / 2016
My Motorhome: Roller team 707
Base Vehicle: 2016 Ducato

Subject:

Re: Water pump not working

· Posted: 04.07.2020 · #12

That’s looks identical to mine, but I don’t have micro switches. I thought the small black box under the pump was the flow switch. Can you check for a 12v supply coming into that box.

Mican

Newbie

Gender: n/a
Location: Lot et Garonne
Age: 69
Posts: 8
Registered: 05 / 2015
My Motorhome: LMC i635 Explorer
Base Vehicle: Fiat Ducato

Subject:

Re: Water pump not working

· Posted: 05.07.2020 · #13

Again thanks for the replies. I've managed to find the control module hidden under the floor under the water pump. They put these things in places that obviously they don't want or expect you to find them. Anyway no joy, No 12V output. Looks like a problem with the module, perhaps the flashing red led is a sign. A phone call to Germany tomorrow morning is the next step.
